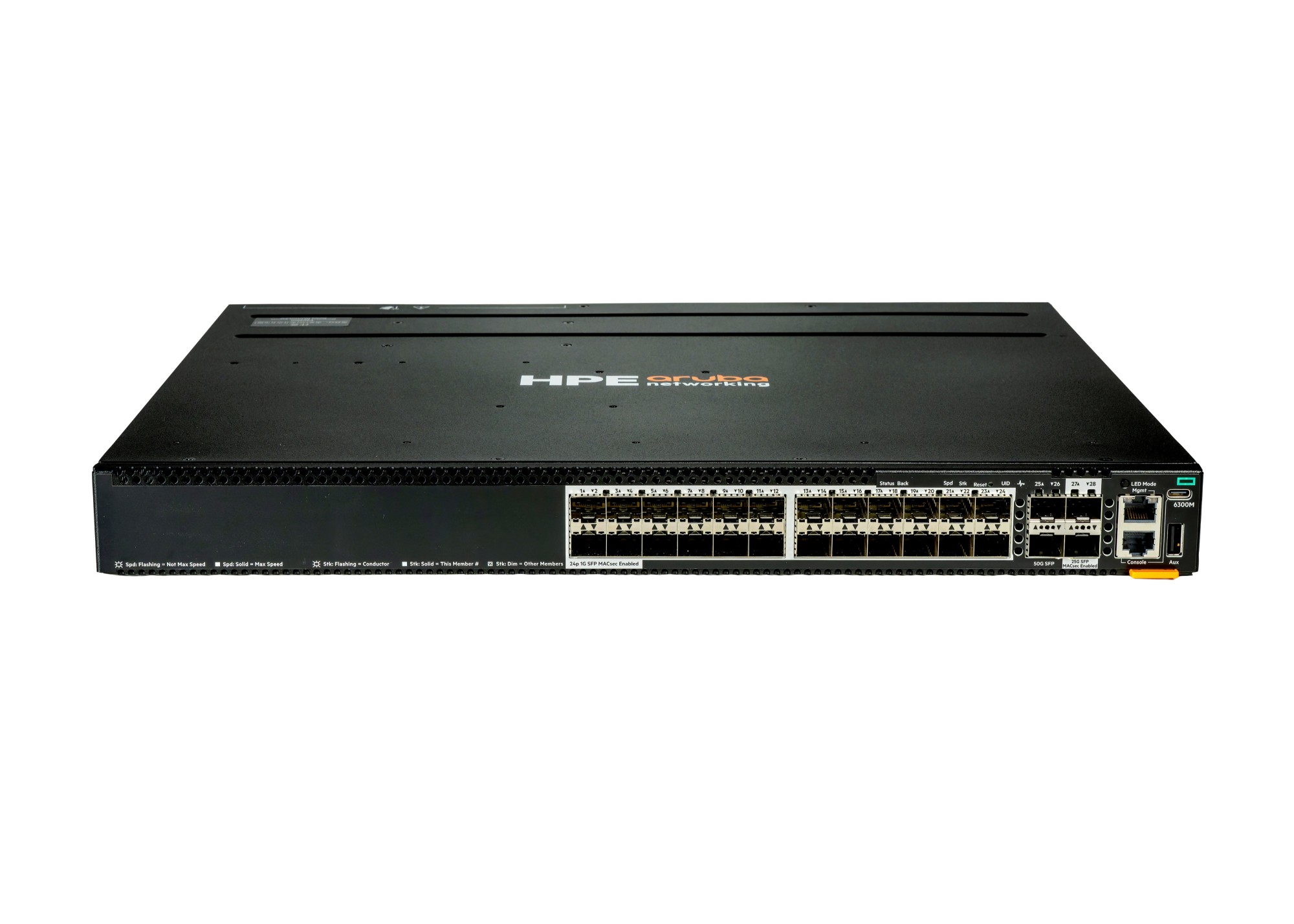

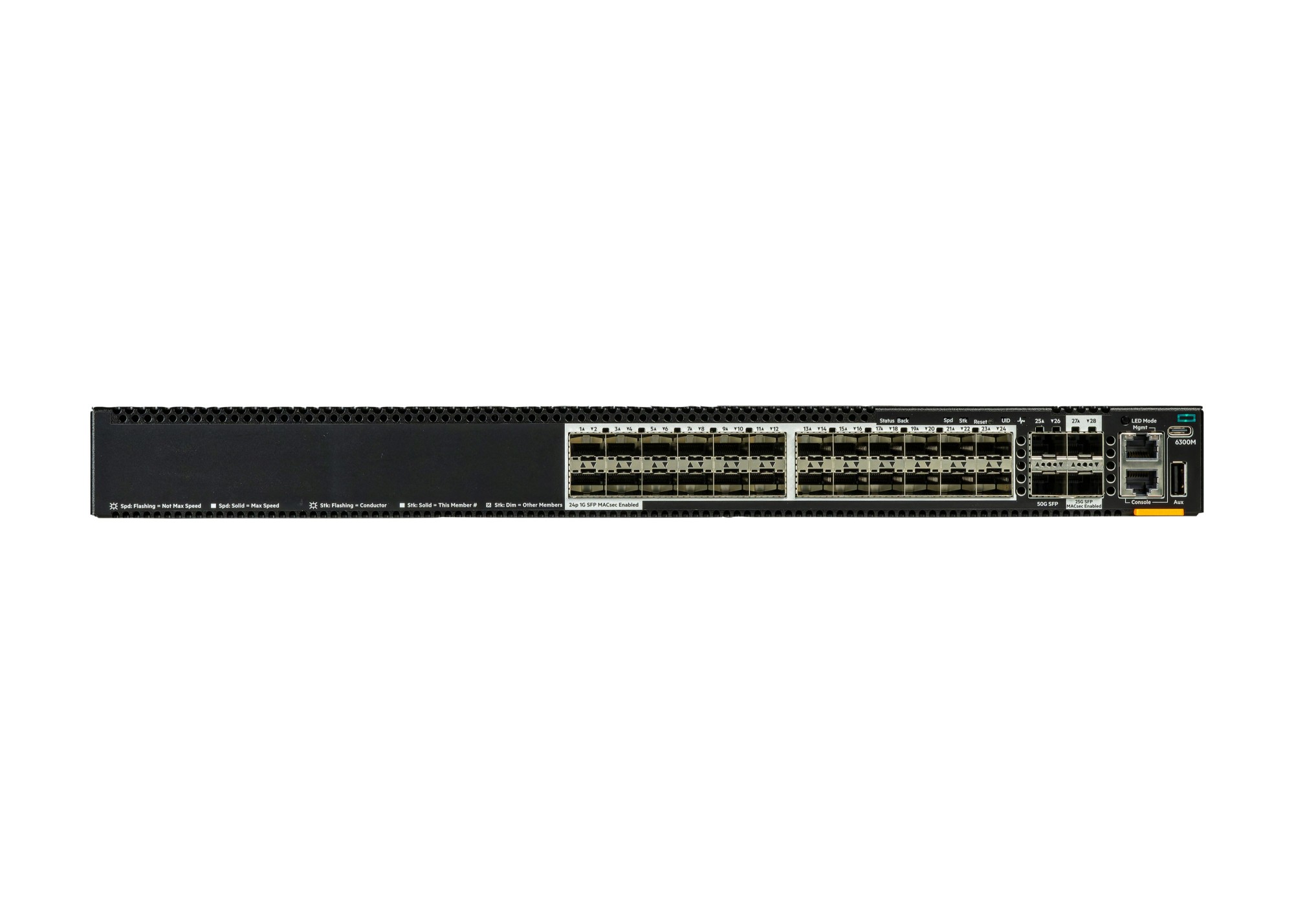

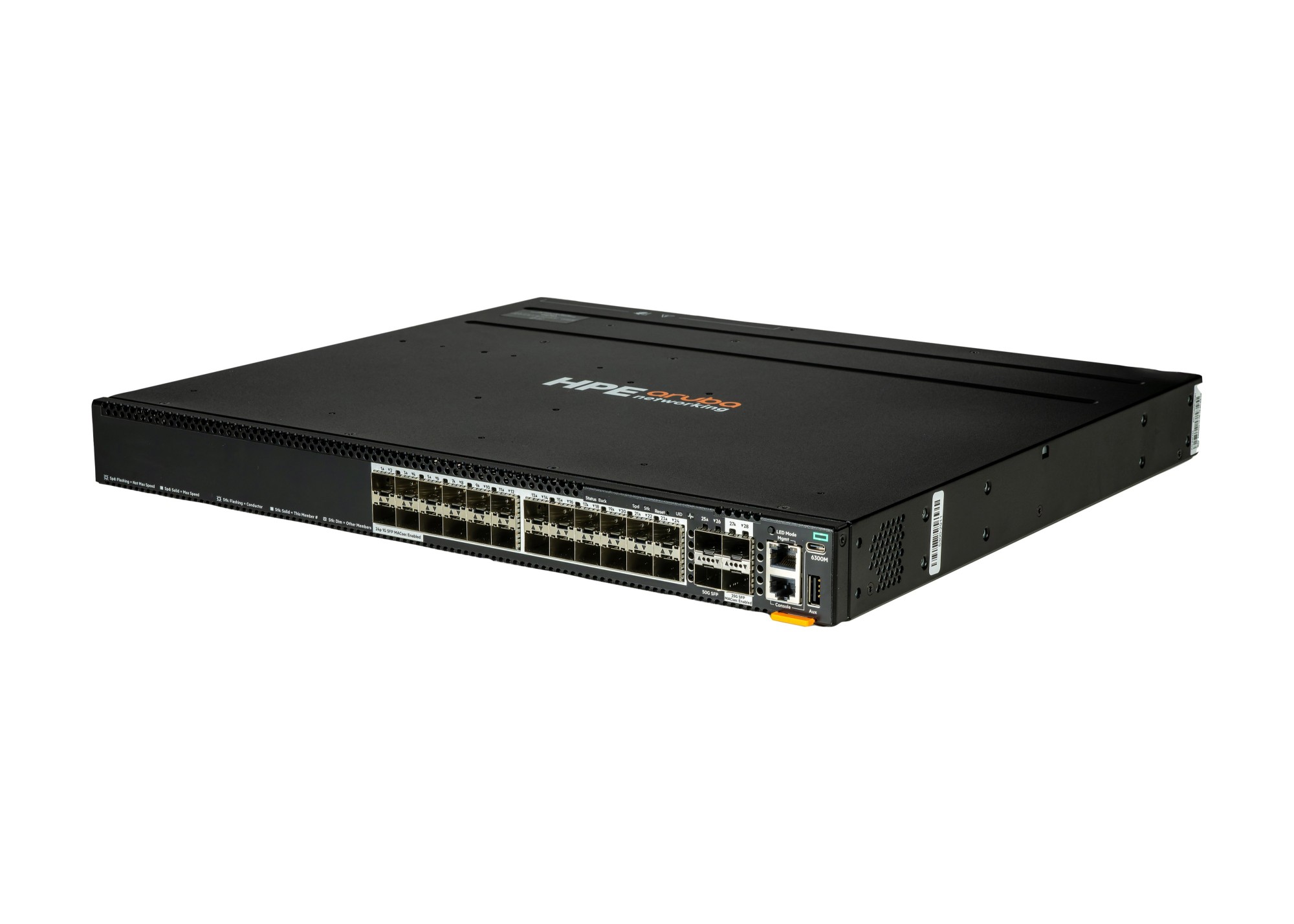

HPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch Strøm over Ethernet (PoE)

HPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch Strøm over Ethernet (PoE)

  • Brand: HPE
  • Category:
  • SKU: S4P44A
  • EAN: 0190017746319
HPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch, Strøm over Ethernet (PoE)

Trade Prices

Distributor Product SKU Stock Updated Price
Tech Data

HPE Aruba Nwking CX 6300M 24p SFP 1G 2p

 11913333 Register free see stock

Related Products

Description

HPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch. Switch kapacitet: 880 Gbit/sek.. Strøm over Ethernet (PoE)

Specifications

Dataoverførsel
Switch kapacitet880 Gbit/sek.
Gennnemløb654 Mpps
Design
StabelbarJa
Præstation
Fysisk stabling10
Processorfrekvens1800 MHz
HukommelsestypeDDR4-SDRAM
Intern hukommelse8000 MB
Flashhukommelse32000 MB
Indbygget processerJa
StabelbarJa
Strømstyring
Strømforbrug noteWith JL086A PSU: Idle: 133W 100% Traffic Rate: 199W With JL087A PSU: Idle: 138W 100% Traffic Rate: 193W With JL670A PSU: Idle: 140W 100% Traffic Rate: 201W
Power over Ethernet (PoE)
Strøm over Ethernet (PoE)Ja
Total Power over Ethernet (PoE)2880 W
Andre funktioner
Reaktionstid1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs
MålstyringManagement flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Hukommelse og processorCPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
VentilatorSwitch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.
Vægt (efter britisk standard)6,02 kg (13.3 Pund)
I/O-porte48 x HPE Smart Rate 100 M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Driftsbetingelser
Driftstemperatur (T-T)0 - 45 °C
Vægt & størrelser
Bredde44 mm
Dybde442 mm
Vægt6,02 kg
